IQ 700 IS
Hazardous Environment Digital Weight Indicator

IQ 700 IS Indicator



Models
bullet IQ 700 IS Hostile Environment Digital Weight Indicator (requires power supply or battery)
System Hardware:
bullet 115 VAC, EP/IS power supply w/15' AC cable
bullet 230 VAC EP/IS power supply w/15' AC cable
bullet IS battery option w/12" cable w/connector
Approvals
NTEP IQ700IS
CC#89-023A2
nmax=10,000
Class III/IIIL

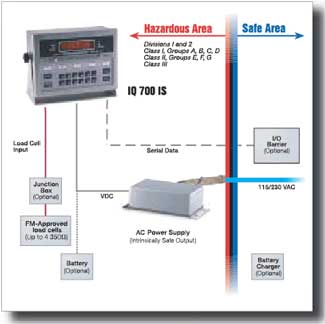

FM This indicator is FM Approved for use in hazardous locations per Rice Lake Weighing Systems' control drawing file number 33476

Download Catalog/Specs PDF file

Get Acrobat Reader





Applications
bullet Class I, Division 1 & 2, Groups A, B, C & D; Class II, Division 1 & 2, Groups E, F & G and Class III hazardous locations
bullet Chemical plants
bullet Portable hazardous weighing
bullet Fueling stations, liquid or gaseous
bullet Paint and ink manufacturing and/or mixing plants
bullet Fertilizer plants
Standard Features
bullet Bright LED display
bullet Stainless steel NEMA 4X enclosure
bullet Front-panel digital calibration
bullet Automatic zero and span temperature compensation
bullet Excitation for four 350-ohm load cells at 5 VDC
bullet Gross/Tare/Net computation
bullet Time and date
bullet Accumulator
bullet Versatile tilt stand
bullet Setup parameters printout
bullet Bidirectional 20 mA current loop communication ports
bullet NTEP certified, Factory Mutual approved
Options/Accessories
bullet Battery charger, 115 VAC
bullet Battery charger, 230 VAC
bullet Tilt stand, required for indicator with battery
bullet I/O barrier assembly
bullet Analog output, 0-10 VDC or 4-20mA (safe area option, requires I/O barrier)
bullet Serial output cable assembly
bullet Hazardous environment load cell cable
bullet Additional operating manual
